সংক্ষিপ্ত বিবরণ ​

The Ilum File Explorer provides a unified interface for browsing, uploading, and managing files across multiple storage systems. It includes capabilities for data preview, quality profiling, and table creation from raw files.

Background​

Data engineering workflows typically involve multiple storage systems such as S3, HDFS, Google Cloud Storage, and Azure Blob Storage. Each system requires:

  • Separate web consoles with different authentication mechanisms
  • Complex IAM policies and permission management
  • Manual schema inference and table creation
  • Command-line tools for basic operations
  • No visibility into data quality before processing

This creates operational overhead and requires switching between different consoles and authentication mechanisms.

Capabilities​

The File Explorer provides the following functionality:

  • Browse files across S3, GCS, HDFS, and Azure Storage from a single interface
  • Upload files via drag-and-drop interface
  • Preview CSV and Parquet file contents without downloading
  • Profile data quality with automated statistics
  • Create tables from raw files with automatic schema inference
  • Generate Spark SQL for table creation

মূল বৈশিষ্ট্য ​

1. Storage Navigation​

The interface provides access to multiple storage systems through a hierarchical tree view.

Supported Storage Types:

  • AWS S3: Access buckets and objects with automatic credential management
  • গুগল ক্লাউড স্টোরেজ (জিসিএস) : Browse folders and files across GCP projects
  • Azure Blob Storage (WASBS): Navigate containers and blobs
  • এইচডিএফএস : Explore Hadoop clusters with RPC-based access

Core Operations:

  • Navigate folders and buckets with breadcrumb navigation
  • Filter and sort files by name, size, or modification date
  • Select multiple items with checkboxes for batch operations
  • Refresh directory contents on-demand
  • Create new folders directly in the interface

File Explorer Main Interface

2. File Upload​

The upload interface supports drag-and-drop functionality for adding files to storage systems.

Upload Features:

  • Drag & Drop: Drop files or entire folders onto the upload zone
  • Click to Browse: Traditional file picker for desktop workflows
  • Multiple Files: Upload dozens of files simultaneously
  • Progress Tracking: Real-time upload status and file size display
  • Context Aware: Automatically uploads to the currently selected path

যেমন: Upload CSV files directly to a specific S3 path like s3://data-lake/raw/sales/.

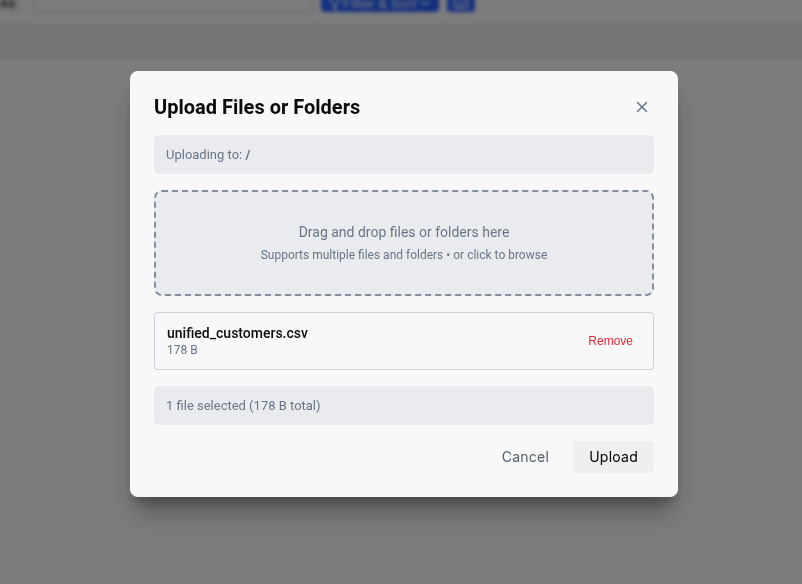

File Upload Modal

3. File Preview​

File contents can be viewed in the browser without downloading.

Preview Capabilities:

  • CSV Files: Line-numbered text view with proper formatting
  • Parquet Files: Column-aware preview with data type inference
  • Large Files: Efficiently handles files up to 100MB with pagination
  • Format Validation: Identify malformed rows or encoding issues

This allows for validation of file format and content before processing.

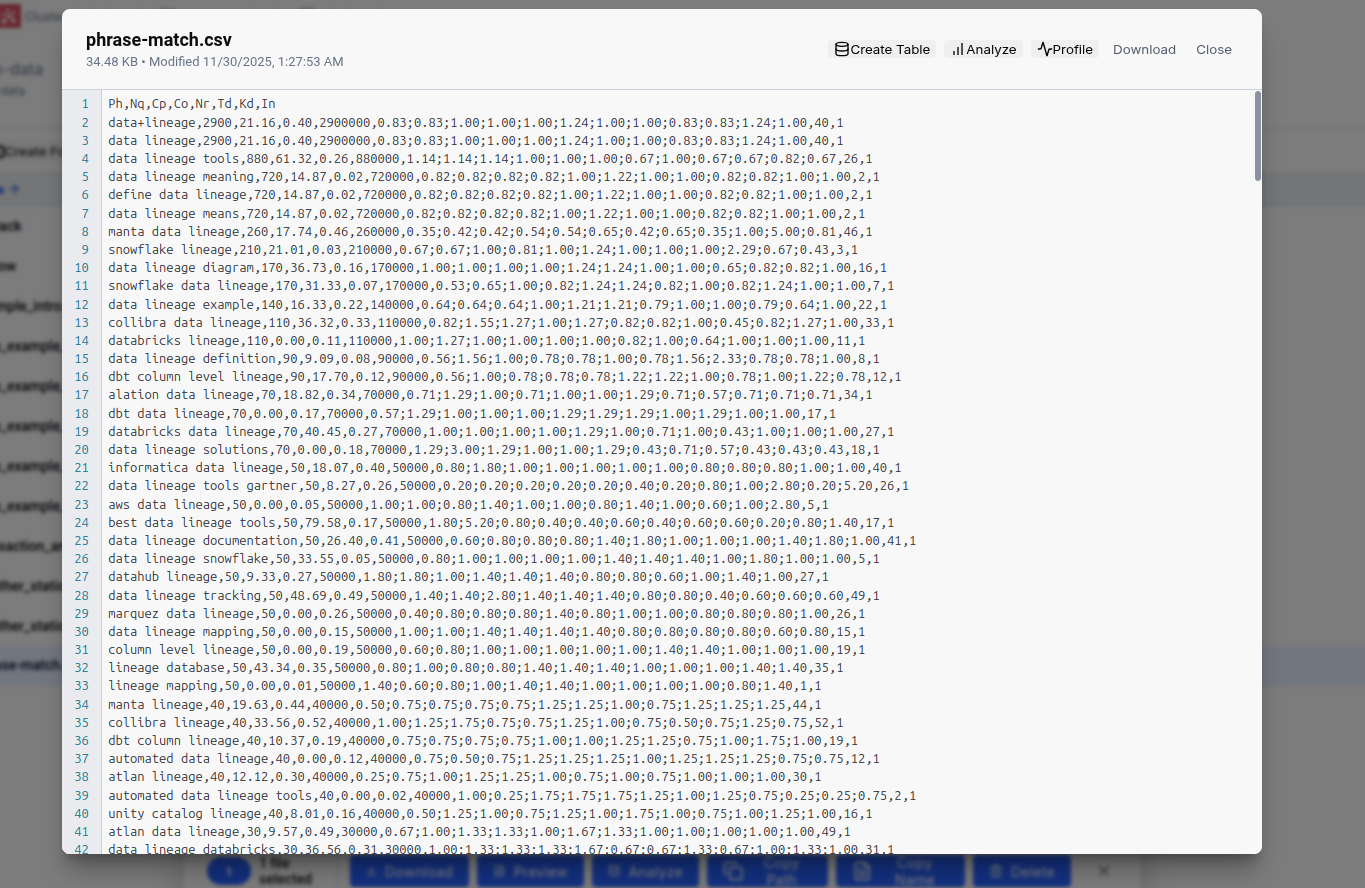

CSV File Preview

4. Table Creation​

The table creation feature converts raw files into queryable tables with automatic schema inference.

Workflow:

  1. Select a CSV or Parquet file in the explorer
  2. টিপুন "Create Table" in the action menu
  3. Review the inferred schema and column types
  4. Select the table format (Delta Lake, Parquet, or CSV)
  5. Execute the generated SQL to create the table

Supported Table Formats:

ডেল্টা লেক ​

  • ACID Transactions: Read and write consistency
  • টাইম ট্রাভেল : Query historical versions with VERSION AS OF
  • স্কিমা বিবর্তন : Add columns without breaking existing queries
  • Optimized Performance: Automatic file compaction and statistics

Parquet​

  • Columnar Storage: Efficient compression and query performance
  • Wide Compatibility: Works with Hive, Presto, and Athena
  • No Metadata: Simple format without transaction logs

সিএসভি ​

  • Human-Readable: Plain text format for maximum compatibility
  • Schema-on-Read: Flexible for exploratory analysis

Generated SQL: The system generates Spark SQL that includes:

  • Schema definition with inferred data types
  • CREATE TABLE IF NOT EXISTS for idempotency
  • ডেল্টা ব্যবহার করে clause for format specification
  • INSERT INTO ... SELECT with proper type casting
  • Source file path resolution

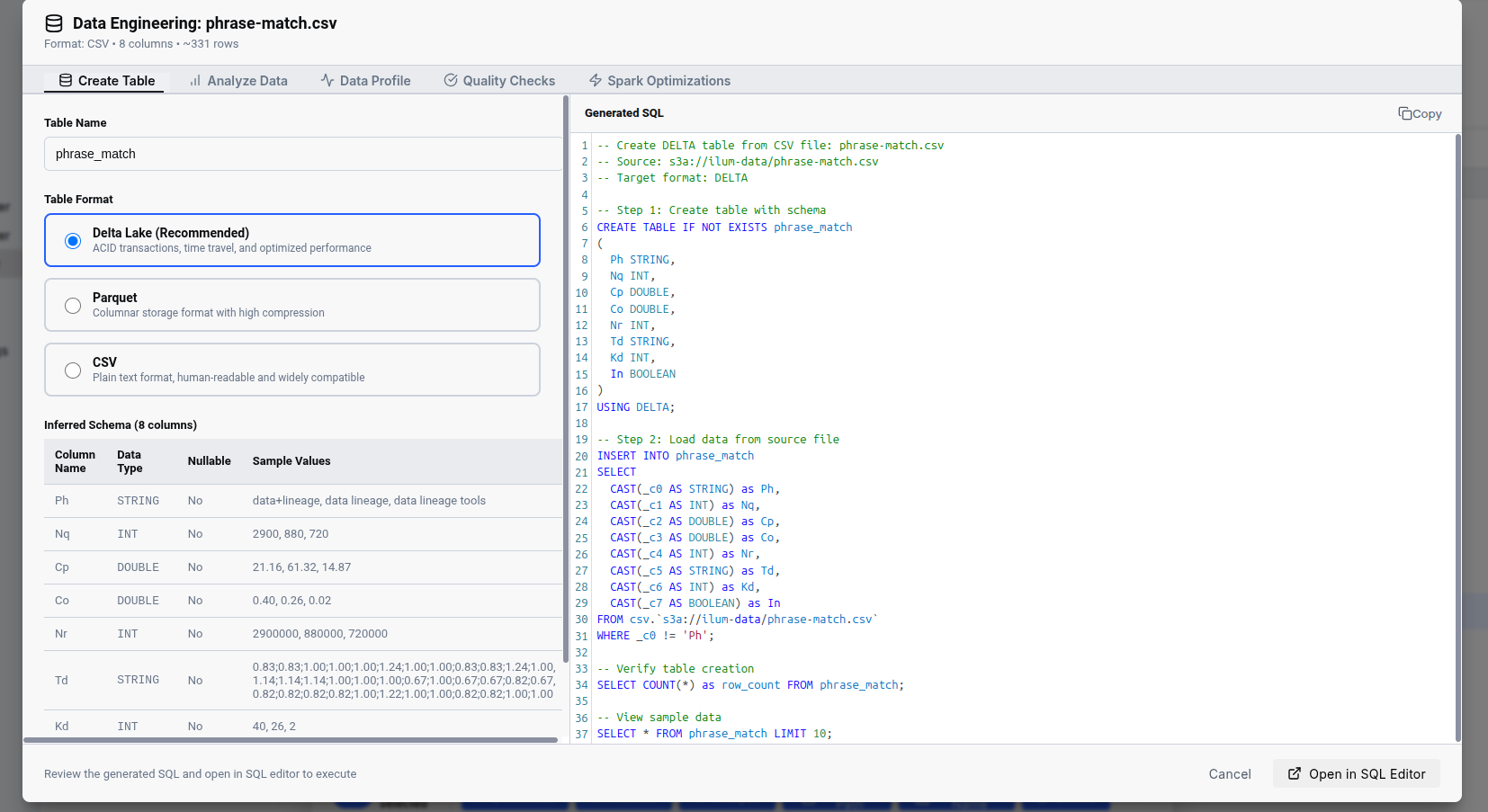

Create Table Wizard

5. Data Profiling​

The profiling feature analyzes data quality through automated statistical analysis.

Automated Statistics:

  • Unique Values: Detect cardinality and potential join keys
  • Null Count: Identify missing data issues
  • Min/Max/Mean: Understand numeric distributions
  • স্ট্যান্ডার্ড ডেভিয়েশন : Spot outliers and data quality issues
  • Quartiles (Q1/Q2/Q3): Analyze data spread
  • Coefficient of Variation: Measure relative variability
  • Skewness & Kurtosis: Detect non-normal distributions

Visual Profiling:

  • Histograms: Distribution charts for numeric columns
  • Outlier Detection: IQR-based outlier identification
  • Null Percentage: Visual indicator of data completeness

Profiling helps identify data quality issues before running processing jobs on large datasets.

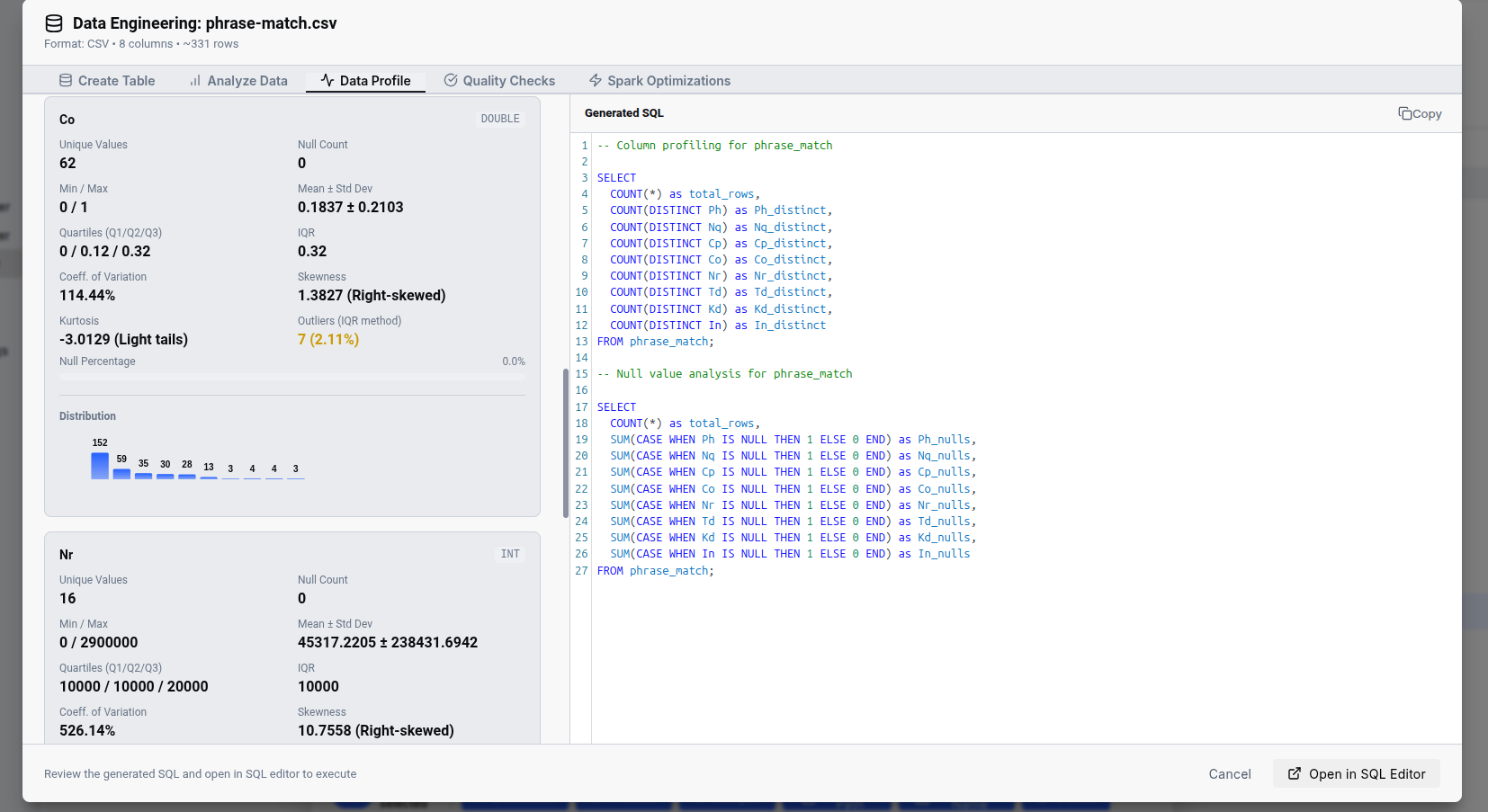

Data Profile View

6. Data Grid​

The data grid displays parsed file contents in a tabular format.

Grid Features:

  • Paginated View: Navigate large datasets 100 rows at a time
  • Column Headers: See exact column names and data types
  • Sort & Filter: Organize data for easier analysis
  • Full Data Display: Displays actual values without truncation

The grid can be used to inspect specific rows or verify data formats.

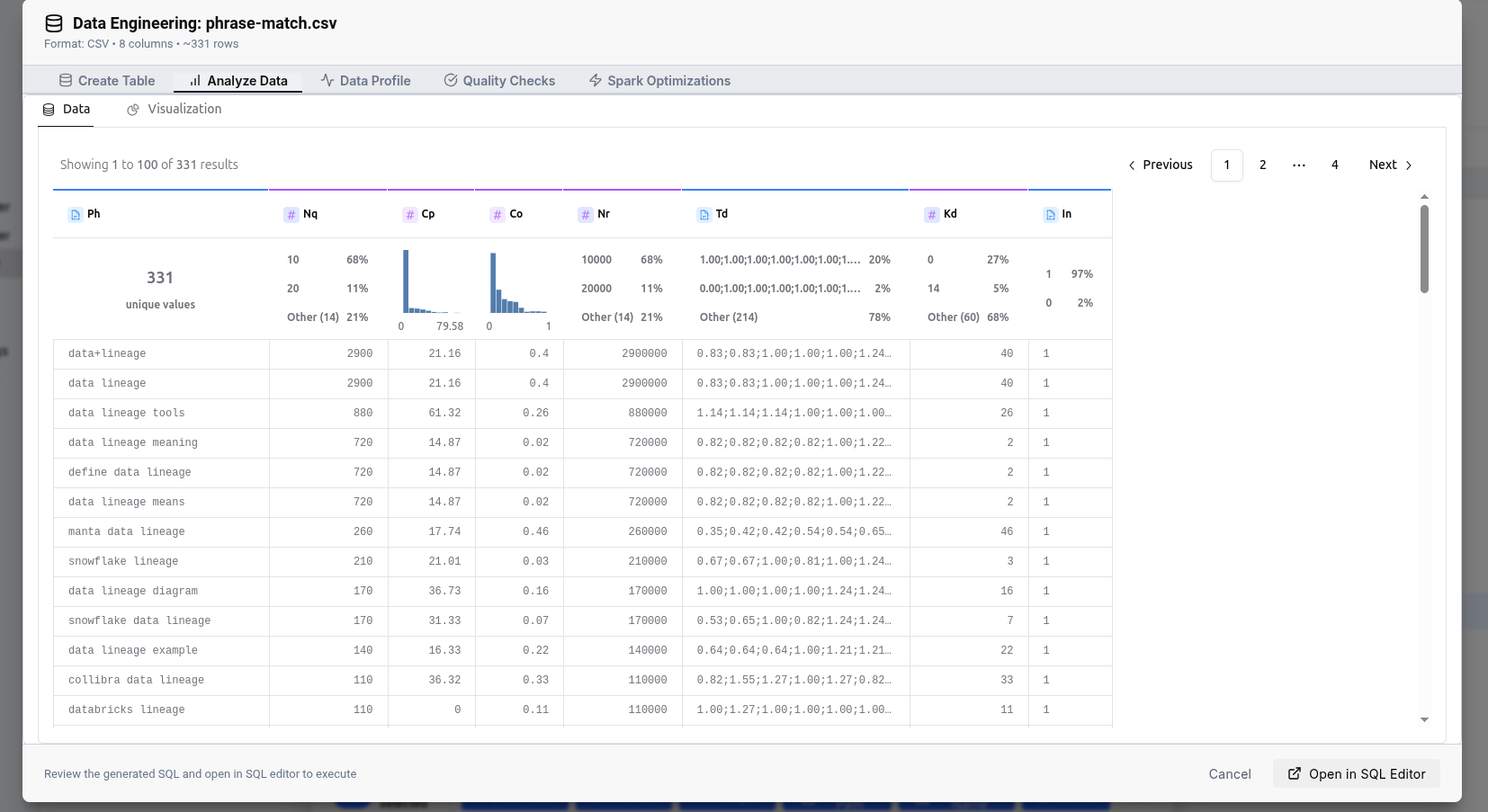

Data Grid View

How It Works​

স্থাপত্য ​

  1. Central Metadata Store: Cluster and storage configurations are maintained in Ilum's database
  2. Cloud Storage Access: S3, GCS, and Azure use native HTTP APIs with managed credentials
  3. HDFS Access: Direct RPC connections via Hadoop client libraries
  4. Spark Integration: Table creation and profiling leverage Apache Spark for distributed processing

Security Model​

  • No Direct Credentials: Users never see or manage storage credentials
  • Role-Based Access: Permissions are enforced at the Ilum level
  • Audit Logging: All file operations and table creations are logged
  • Encryption: Data in transit uses TLS/SSL

কেস ব্যবহার করুন ​

Data Onboarding​

Upload CSV files, profile data quality, and create Delta tables for downstream processing.

ডাটা এক্সপ্লোরেশন ​

Browse production data lakes to verify file formats, check partition structures, and validate data freshness before building pipelines.

Quality Validation​

Before running expensive ETL jobs, profile source files to catch schema mismatches, encoding issues, or missing values.

Schema Discovery​

Infer schemas from Parquet files and generate CREATE TABLE statements.

সর্বোত্তম অনুশীলন ​

  1. Profile Before Table Creation: Run data profiling before creating production tables to identify quality issues
  2. Delta Lake for ACID Operations: Use Delta format for tables that require updates, deletes, or time travel
  3. Review Generated SQL: Examine the generated SQL before execution
  4. Organize by Layers: Structure your storage with /raw, /stagingএবং /curated folders
  5. Validate Previews: Use the file preview feature to spot encoding or delimiter issues before ingestion

Limitations​

  • Preview Size: File previews are limited to the first 1,000 lines or 100MB
  • Profile Sampling: Data profiling analyzes up to 10,000 rows for performance
  • Binary Files: Only CSV and Parquet files support preview and profiling
  • Large Directories: Directories with >10,000 files may have slower load times
